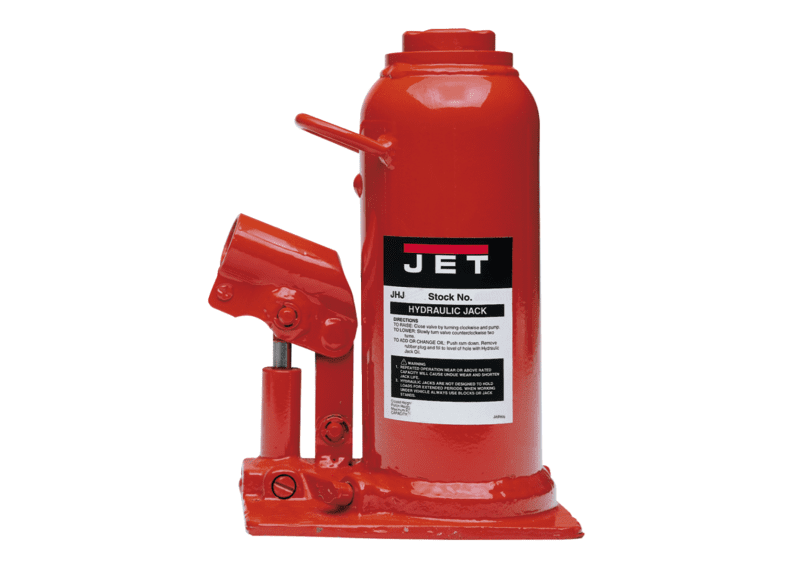

5 Ton Hydraulic Bottle Jack


  • Complies with ANSI/ASME B30.1 and PALD-1 Standard.
  • Heavy-duty bases are electrically welded providing a stable platform.
  • Hydraulic system is protected from damage by internal by pass-mechanism.
  • Industrial-duty construction permits use in extreme climates.
  • Lifting, pushing, spreading, bending, pressing or straightening capabilities.
  • Operating tempreature range from -4°F to 158°F.
  • Precision machined and plished cylinders provide non-abrasive, leak-free, durable performance.
  • Pump handle included.
  • Upright, horizontal or angled operating positions increase versatility.


Base Dimensions (L x W) (In.) 5-5/8" x 3-1/4"
Head Diameter (In.) 2-3/4"
Load Capacity (Tons) 5
Maximum Height (In.) 15-1/2"
Minimum Height (In.) 7-7/8"
Piston Height (In.) 4-5/8"
Piston Lift (In.) 4-5/8"
Weight (Lbs.) 9

SKU: WMH-453305
